LCD or Plasma for Automatic Scoring
Converters and Brackets for scoring monitor upgrades

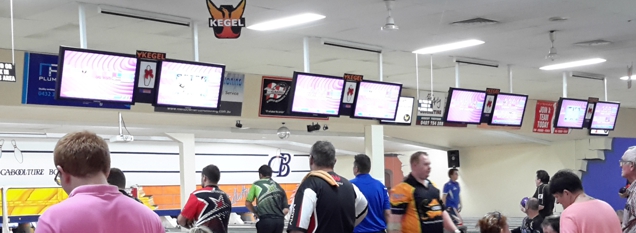

Many older scoring systems may still work just fine but need a facelift by replacing the CRTs with LCD or plasma monitors. However, very few LCD or plasma monitors will connect directly with many older scoring systems because of incompatibilities with the video signal. You could try a cheap monitor and an expensive video converter. But this is not always guaranteed to work.
We have tried many scoring, converter and screen combinations. The Panasonic commercial 42"plasma monitors worked perfectly with all scoring systems that we tried. The screens are rated for 24/7 usage, have tough glass screens and cooling fans for the electronics and the housings are metal, not plastic. The added bonus is that the video input options on these screens is incredibly flexible - so much so that you can easily connect older scoring systems, including Qubica with VDBs and Computerscore (Vantech) ECT without using expensive converters.

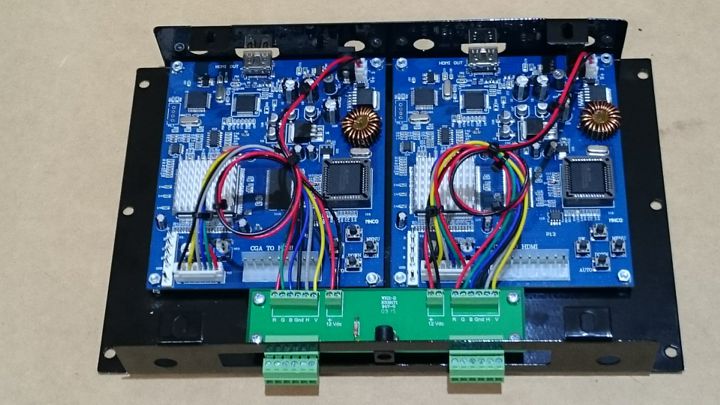

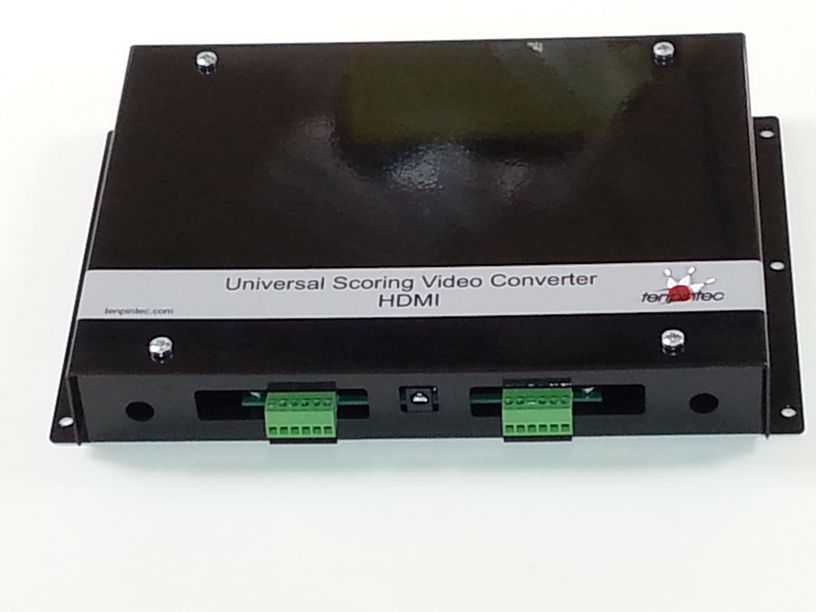

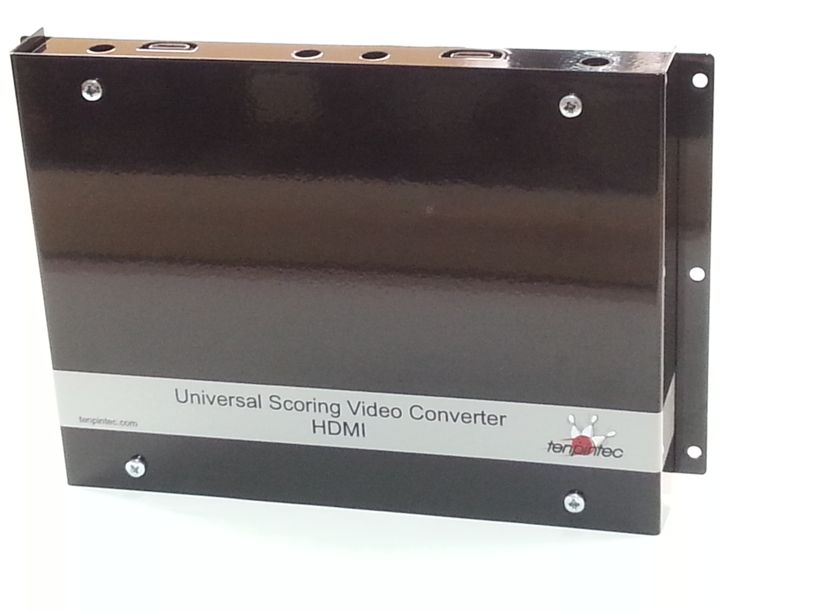

However, you will probably still need something to convert the 9pin D output on a VDB to 15pin for the monitor. You can make your own converter cable or purchase an inexpensive converter like the ones below. This converter then allows you to use standard VGA or XVGA leads.
Converter for Qubica VDB to Panasonic commercial plasma (or other monitor with minimum horizontal scan rate of 15kHz)
Converter for Computerscore (Vantech) ECT to Panasonic commercial plasma (or other monitor with minimum horizontal scan rate of 15kHz)
Hanging Bracket assemblies (double or triple) for chains. Adjustable viewing angle and adjustable for chain separation. .
|
|
||||||||||||
|
||||||
|
||||||||||||
Qubica scoring with VDBs |
| Fitting guides: | ||||
| Price and shipping information | |||
| Part No. | Description | Weight | Price (Australia) |
| Panasonic 42" Plasma monitor (commercial model) | please call | ||
| Hanging bracket assembly - double (suits 32 - 50" screens) | AUD $390.00 | ||
| Hanging bracket assembly -triple (suits 32" to 50" screens) | AUD $490.00 | ||
| Converter - VDB without synch separation (normal configuration) | AUD $39.00 | ||
| Converter - VDB with synch separation (only rarely required) | AUD $89.00 | ||
| Converter - ECT | AUD $ 39.00 | ||
| Accessories and Spare Parts | |||
| Video Cable XVGA 2m | AUD $18.50 | ||
| Video Cable XVGA 5m | AUD $25.90 | ||
| IEC Power Cable (240V Australia) 2m | AUD $5.90 | ||
| IEC Power Cable (240V Australia) 5m | AUD $10.90 | ||
| Shipping within Australia by Fastway | |||
| Shipping within Australia by Australia Post | |||
| Shipping outside Australia by TNT | |||
| Shipping outside Australia by UPS | |||
| Ordering information Order Form | |||
| Price is shown in Australian Dollars (not including GST). Please use the Universal Currency Converter to convert >>> >>> to your own currency or email us for information. |
>>> |  |
|
| Price shown is for up to 10 units - please enquire about quantity pricing | |||
| Available from: | |||
| Australia | Cybernetic Solutions/tenpintec | ||
| Australia | Eastern Bowling | 1800 035 531 | |
| All other places | Cybernetic Solutions/tenpintec | ||
| Note that suppliers' prices may vary from prices listed
on this page due to added transport costs, import duties and other government charges. |
|||
Available NOW !
