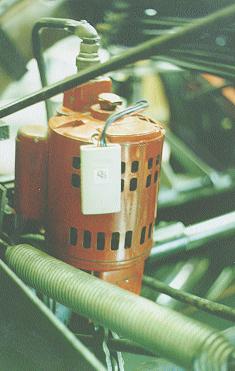

Solid State Start Switch

for Combination Motor

Suitable for 110V and 110/220V (single phase) capacitor start electric motors
including Sweep and Table motors

(not suitable for continuous-run applications - see SS110BE)

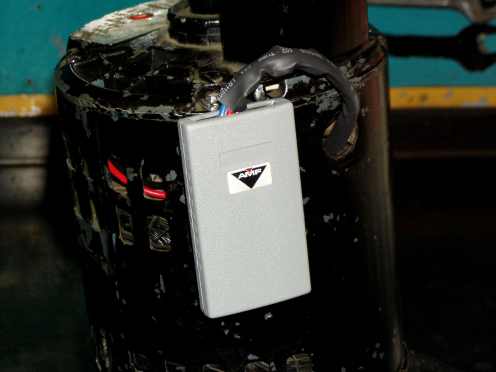

Start Switch Combination Motor - AMF








  • Manufactured from high quality components
  • Quick field installation
  • Mechanical switch and centrifugal mechanism no longer required
  • Suited for capacitor braking
  • Guaranteed for 12 months (typically from 600,000 to 1,000,000 switching cycles on a sweep motor)
  • High efficiency
  • Suitable for 110-115V and dual voltage 115/230V motors
  • Internal thermal fuse for safety. Acts as a backup in case Klixon fails to cut power to motor in an
    overload situation. Double protection for motor windings.
  • Current sensing technology. More accurate and reliable switching than the more common and cheaper
    timer method. Motor starting will be almost instantaneous where motor loads are within tolerance.









Fitting guides:
Machine
Motor

Supply Voltage
AMF 82-30 Westinghouse Single Voltage 115
AMF 82-30 Westinghouse Dual Voltage 115 230
AMF 82-70 GE Single Voltage 115
AMF 82-70 GE Dual Voltage 115 230
AMF 82-70 Westinghouse Single Voltage 115
AMF 82-70 Westinghouse Dual Voltage 115 230
AMF 82-70 National Dual Voltage 115 230








To regain sweep reverse after solid state start switch is fitted:
AMF 82-70 SS Chassis Standard SS Chassis with Elco or CPC Mask Plug
AMF 82-70 MP Chassis - 84
 For chassis converted from SS to MP or made prior to 1985. Use this modification for Omega Tek with and without Expander. New diagram updated JULY 2003
AMF 82-70 MP Chassis 85+
 For MP chassis manufactured in or after 1985 and fitted with sweep reverse relay. New diagram updated JULY 2003 (and corrected 21 April 2004. Thanks to Don Munnings of Embassy Services)








Price and shipping information
Part No. Description Weight Price (Australia)
SS110C Solid state start switch - combination motor 0.15kg AUD $44.50


  Shipping within Australia by Fastway
  Shipping within Australia by Australia Post
  Shipping outside Australia by TNT
  Shipping outside Australia by UPS

  Ordering information           Order Form

  Price is shown in Australian Dollars (not including GST).
Please use the Universal Currency Converter to convert          >>>         >>>
to your own currency or email us for information.		 >>>
UCC
Price shown is for up to 10 units - please enquire about quantity pricing







Available from:
USA QubicaAMF and distributors Order part no 610 309 044
United Kingdom AMF England Order part no 610 309 044
United Kingdom Embassy Services Phone 1227 719799
Japan Ace Bowling Tech
Netherlands, Belgium, Luxemburg BRS Bowling Services
Australia Eastern Bowling
Australia Cybernetic Solutions/tenpintec
All other places Cybernetic Solutions/tenpintec

Note that suppliers' prices may vary from prices listed on this page due to
added transport costs, import duties and other government charges.
