LaneMinder 2
(Supercedes original LaneMinder)
Lane Safety System
Infra-red intrusion detection system designed specifically
for the tenpin bowling lane area


| |
- Manufactured from high quality components
- Quick field installation
- 12 month warranty
- IR beam units are mounted on custom brackets with
pc board for RJ-45 socket, LED indicator, audible alarm and
intelligent control
- Control unit is microcontroller based and houses
an audible and visual alarm
- The basic LaneMinder 2 will reliably span up to
40 lanes (we can substitute higher powered IR units at additional
price for larger centres)
- Standard LaneMinder will span up to 40 lanes - higher power
IR units are available for larger lane areas
- The LaneMinder is currently installed in more
than 50% of bowling centres in Australia including all AMF centres.
- Control Unit has provision for Beam 1 (infra-red beam transmitter
and receiver pair positioned about 5 feet past foul line) and
Beam 2 (optional infra-red beam transmitter and receiver pair
positioned about 5 feet in front of mask units). See below for
more detail.
LaneMinder 2 Standard
Beam 1 transmit (Tx) and receive (Rx) units are fixed to the side
walls of the centre, one at each end, at somewhere between 5 and
15ft down the lanes.
Height of the beams over the lanes should be about 18 inches to
2 feet, so that a small child will break the beam.
Buzzers sound and a high intensity LED array flashes on the control
unit when Beam 1 is broken.
LaneMinder 2 Plus
is a LaneMinder 2 Standard plus.....
...... additional (Beam 2) transmit and receive modules (supplied
with LaneMinder 2 Beam 2 kit) which should be fixed to the side
walls at about 50 to 55 feet down the lanes.
When Beam 2 is broken in sequence after Beam 1, the buzzers increase
in intensity and the Cut-out modules shut down the pinspotter or
pinsetter machines.
Some bowling centre operators
may think that it would be an inconvenience to have all lanes shut
down if that second beam were to be broken by a patron. The machines
will only be shut down if Beam 2 is broken in sequence after Beam
1 and only if the control unit has not been reset after Beam 1 is
broken. Consider the inconvenience if a
person were injured by a pinspotter or pinsetter.
Contact your public risk insurer
and ask if they give premium discounts where a public safety device
such as LaneMinder 2 is installed.
|
|
| |
|
|

example of LaneMinder 2 Plus on 32 lanes using Cutout-8 Modules
| |
LaneMinder 2 Standard

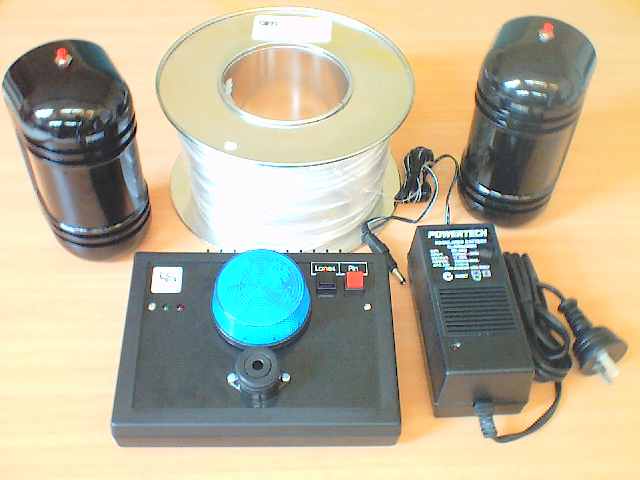

kit consists of:
- 1 x LaneMinder 2 Control Unit
- 1 x LaneMinder 2 Transmitter Module
- 1 x LaneMinder 2 Receiver Module
- 2 x pre-made 30m Cat-5 cable
- 2 x pre-made 20m Cat-5 cable
- 2 x Cat-5 in-line joiners
- 1 x 12VDC power supply
Customers can order this kit without Cat-5 cables to significantly
reduce shipping weight. |
|
| |
|
|
| |
LaneMinder 2 Plus
kit consists of:
- 1 x LaneMinder 2 Control Unit
- 2 x LaneMinder 2 Transmitter Module (one for top end of lane
area, one for bottom area)
- 2 x LaneMinder 2 Receiver Module (one for top end of lane area,
one for bottom area)
- 8 x pre-made 30m Cat-5 cable
- 2 x pre-made 20m Cat-5 cable
- 5 x Cat-5 in-line joiners
- 1 x 12VDC power supply
- ? x Cutout-2 Modules (one module required for each pair of lanes)
OR
? x Cutout-8 Modules (one module required for each 8 lanes) -
can replace the 8 lane managers control junction boxes sometimes
found on the curtain wall
- 1 x Cutout Control Module (optional where Cutout-8 Modules are
used)
- 1 x (optional) Remote Control Kit (requires Cutout Control Module)
Customers can order this kit without Cat-5 cables to significantly
reduce shipping weight. |
|
| |
|
|
|
|
|
- Top Left: Cutout-2 Module - connects with Managers Control or
Mask Switch to shut down machine pair
- Top Right: Cutout Control Module - controls operation of Cutout-2
Modules. Has "Lanes" and "Reset" buttons (not
shown) to duplicate those on main Control Unit. Optional Remote
Control plugs into this Module
- Left: Cutout-8 Module - can be used instead of Cutout-2 Modules.
Useful where there are existing 8 lane Managers Control junction
boxes already on the curtain wall
- Bottom Left: Buzzer Module - powered from the CAT-5 cable or
separate 12VDC to provide some extra noise where needed
- Bottom Right: Two Function Remote Transmitter
|
|
|
| Part No. |
Description |
Weight |
Price (Australia) |
| LM-2 |
LaneMinder 2 - Standard (kit) |
5.0kg |
AUD $890.00 |
| |
|
|
|
| LM2-TX |
LaneMinder 2 - Transmitter Module |
|
AUD $195.00 |
| LM2-RX |
LaneMinder 2 - Receiver Module |
|
AUD $195.00 |
| LM2-C2 |
LaneMinder 2 - Cutout-2 Module |
|
AUD $49.00 |
| LM2-C8 |
LaneMinder 2 - Cutout-8 Module |
|
AUD $159.00 |
| LM2-CC |
LaneMinder 2 - Cutout Control Module |
|
AUD $79.00 |
| LM2-RC |
LaneMinder 2 - Remote Control Kit |
|
AUD $139.00 |
| LM2-BUZZ |
LaneMinder 2 - Buzzer Module |
|
AUD $29.00 |
| |
|
|
|
| |
|
|
|
| |
