PIT-LED BLU
LED Pit Light (Pin Deck Light) for Pinspotter and Pinsetter machines
| |
|
Cree XR-E 3 Watt white LEDs make the tenpintec
PIT-LED units brighter than tri-phosphor fluorescent tubes
Lane 1+2 PIT-LED, Lane 3+4 triphosphor fluoro |
Blue LED light gives a more brilliant effect on
UV reactive pins
than Blacklight tubes without affecting scoring cameras |
| |
|
One PIT-LED BLU set covers a pair
of lanes.
One control box, two LED arrays and cables are included. |
PIT-LED BLU can be ordered in two versions:
DMX512 or relay switched |
| |
|
| |
|
The PIT-LED RGB control box mounts
on the curtain wall
and plugs into a standard power outlet. The internal
power supply is switchable (115 or 240V). |
Cables to the two LED arrays carry
low voltage only,
making the PIT-LED much safer than traditional
115V fluorescent pit light fixtures. |
| |
|
The blue light from the PIT-LED
creates a dramatic glowing
effect on UV reactive pins - even more outstanding than
that of most "black-light" tubes
|
| |
|
Relay control will automatically fade the PIT-LED
BLU from
White to Blue as overlane lights are switched from white to UV |
Full DMX control allows auto or manual colour changing
of PIT-LED units from the front control desk |
| |
|
| |
|
Expected lifetime of LEDs is 50,000
hours plus ...
far in excess of fluorescent tubes. |

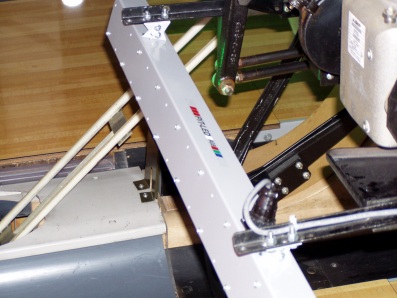

The PIT-LED array is fitted with
adjustable mounting brackets
to enable optimal illumination of the pins. |
| |
- No fluorescent tubes!
- Manufactured from high quality components
- Quick field installation
- Expected lifetime of LEDs is upwards of 50,000 hours
- Each LED array consists of 16 Blue and 16 White, 3 Watt Cree
LEDs
- Very safe - only low voltage power (approx. 20VDC) goes to the
LED array (light unit mounted on front of machine)
- Control Box plugs into 115 - 240VAC (switchable CE rated power
supply)
- Power supply and LED dimmers are fan cooled (DMX model only)
- Choose between two control options: (1) worldwide standard DMX-512
control protocol
or (2) simple relay control from overlane lighting
- 12 month warranty
- When using DMX-512 for control, Blue and White each have 256
steps of brightness
- Using relay control, PIT-LED BLU can automatically fade from
White to Blue when lane lights are switched from white to UV
|
|
| |
|
|
| Part No. |
Description |
Weight |
Price (Australia) |
| PIT-LED BLU-DMX |
PIT-LED BLU (Pair Set) DMX Version |
10kg |
AUD $1,390.00 |
| PIT-LED BLU-REL |
PIT-LED BLU (Pair Set) Relay Switched Version |
10kg |
AUD $1,190.00 |
| |
|
|
|
| |
|
|
|
| |
Shipping within Australia by Fastway |
|
|
| |
Shipping within Australia by Australia
Post |
|
|
| |
Shipping outside Australia by TNT |
|
|
| |
Shipping outside Australia by UPS |
|
|
| |
|
|
|
| |
Ordering information
Order Form |
|
|
| |
|
|
|
| |
Price is shown in Australian Dollars (not including GST).
Please use the Universal Currency Converter to convert >>>
>>>
to your own currency or email us for information. |
>>> |
|
|
